Clean, dry air isn’t a luxury, it’s essential. Whether you're powering pneumatic tools, running actuators, or operating high-value machinery, the quality of your compressed air directly affects performance, reliability, and maintenance costs.
Many facilities invest in compressors and dryers, but a critical component often gets overlooked: point-of-use filtration.

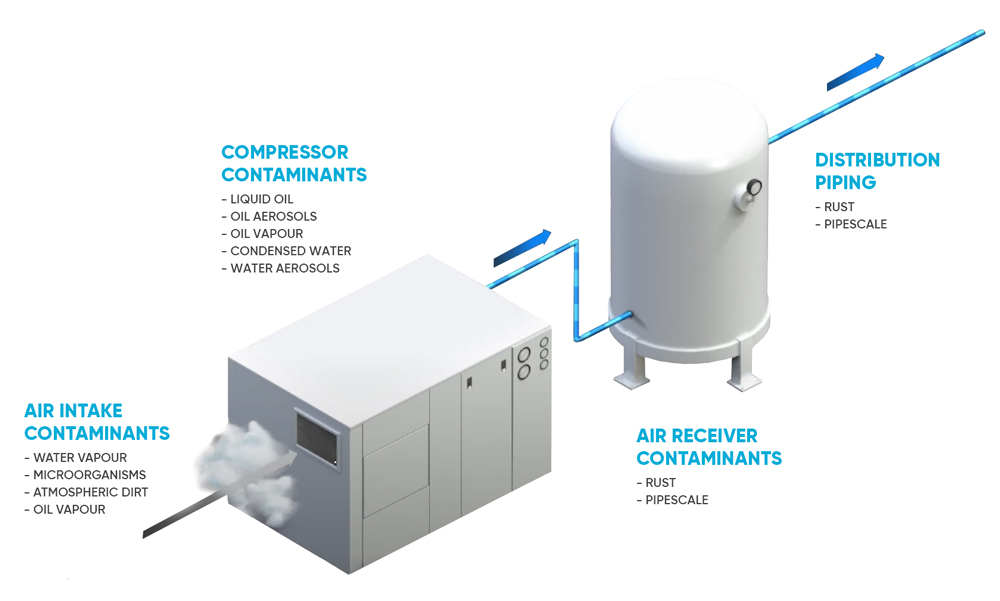

The #1 Enemy? Water. Moisture is the most common and problematic contaminant in compressed air systems. When air is compressed, it becomes oversaturated with water vapor, reaching a pressure dew point of 100%. This means the air holds as much moisture as it possibly can, and as it cools, particularly during pressure drops within tools or actuators, liquid water begins to condense.
Even air that appears dry at the source can produce water further downstream, potentially causing damage or performance issues in pneumatic equipment.
Most facilities incorporate filters and dryers in the compressor room as the first line of defense against contaminants. Dryers are essential for reducing the pressure dew point of compressed air. When the pressure dew point is sufficiently lowered, water will not condense within the plant’s distribution system. Combined with proper filtration, this setup delivers compressed air that is generally clean and dry enough for downstream use.
However, if the dryer and filtration systems are underperforming, free-standing water, oil carryover, and particulates can quickly move through the system, reaching tools and machinery. This contamination can lead to equipment wear, failures, and costly downtime.
After the compressor room, the materials used in the plant’s compressed air distribution piping play a critical role in maintaining air quality. If all piping downstream of the final filtration stage is constructed from non-corrosive materials such as stainless steel, anodized aluminum, rubber, or plastic, the risk of introducing additional contaminants is minimal. In these cases, point of use filtration may not be necessary.
However, if the system includes black iron pipe, carbon steel tubing, or other corrosion-prone materials, particulate contamination will develop over time. In such systems, point of use filtration is required to capture corrosion byproducts before they reach pneumatic tools or equipment.

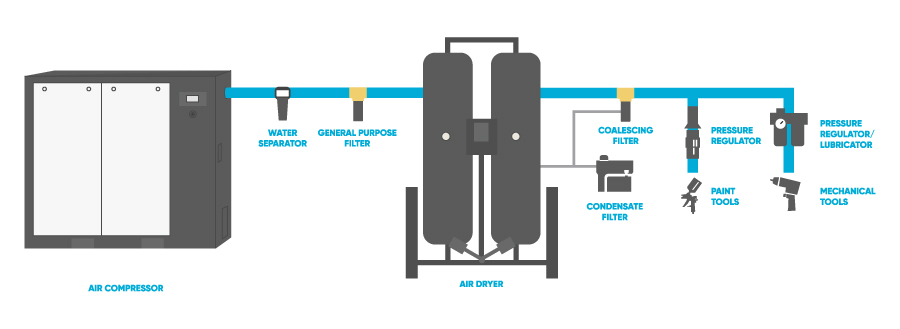

Point of use filtration means placing filters right before the air hits your tool or machine. These filters are designed to capture particulate contaminants generated within the piping system due to internal corrosion. Such corrosion occurs even in systems operating with dry air and is significantly accelerated by the presence of moisture, even for short durations.
While point of use filtration does not reduce the pressure dew point, it effectively removes residual free-standing water, oil aerosols, and solid particulates that may be present in the air stream. The specific filtration setup required at each point of use depends on the overall air quality and may consist of one to three filtration stages to ensure adequate protection for the application.
Another common but risky approach is to ignore pressure dew point and contamination levels within the compressed air system. While this might reduce initial spending, it often leads to significantly higher long-term costs. Pneumatic tools and machinery are not designed to operate with wet or contaminated air. The result is often premature equipment failure, increased maintenance, and unexpected downtime.
Compared to the cost of equipment repairs or replacements, installing proper plant filtration is a relatively small investment. Facilities that overlook air quality typically experience higher operating and maintenance expenses over time.
